OPENING ANGLE

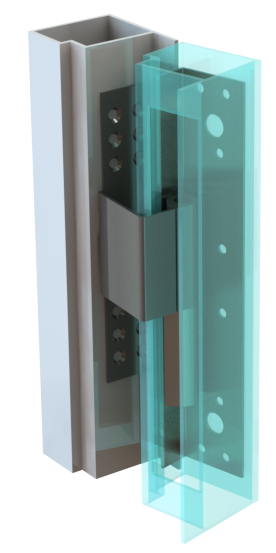

Although the Rivex hinge is completely concealed the door’s opening angle is still up to 93 degrees.
WHY TO CHOOSE RIVEX™ CONCEALED HINGE?
OPENS LIGHTLY

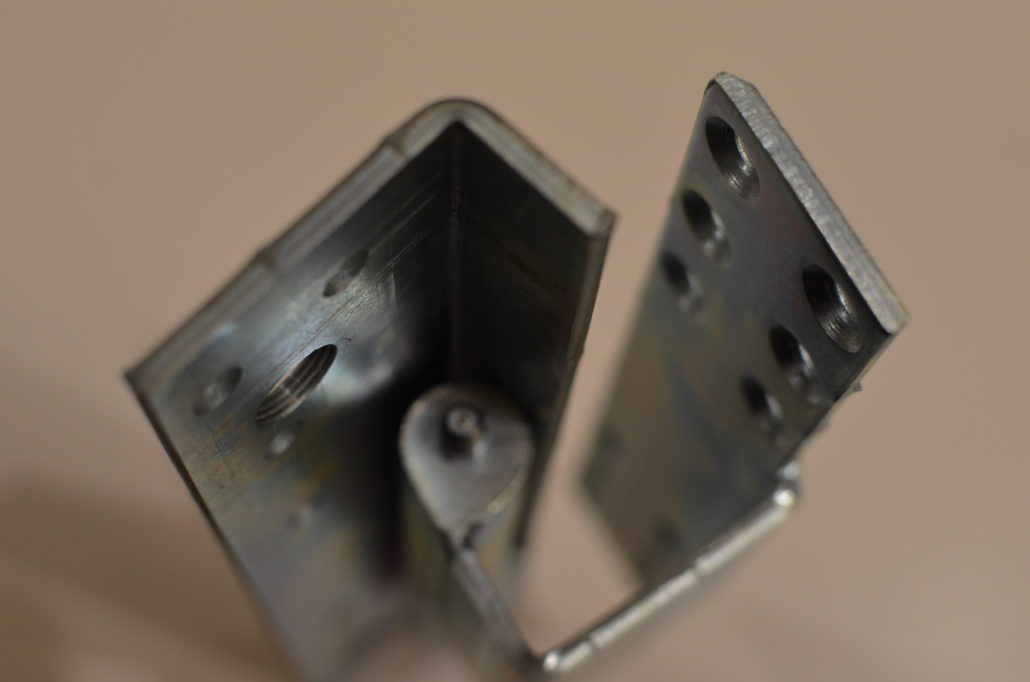

The RIVEX™ concealed hinge has a 11mm inner bearing so the door opens very lightly.
LIFTABLE
The door can be lifted and put back into place without tools.
ALWAYS CLEAN
The RIVEX™concealed hinge is lubricated by oil through the grease nipple.

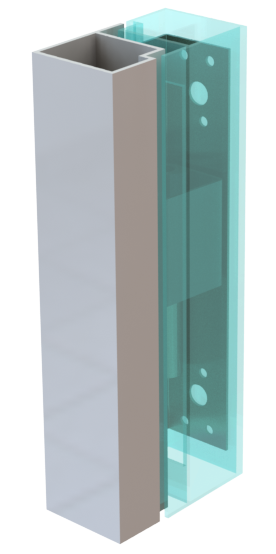

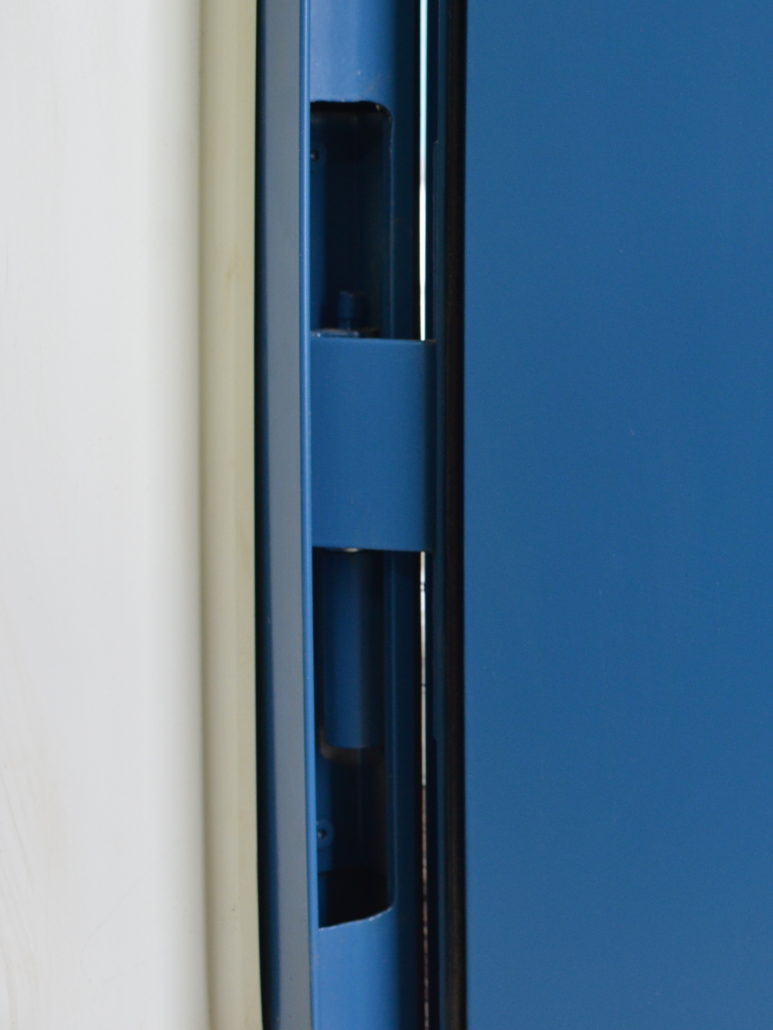

As an invisible hinge the RIVEX™ is an architect’s dream!
TECHNICAL INFORMATION

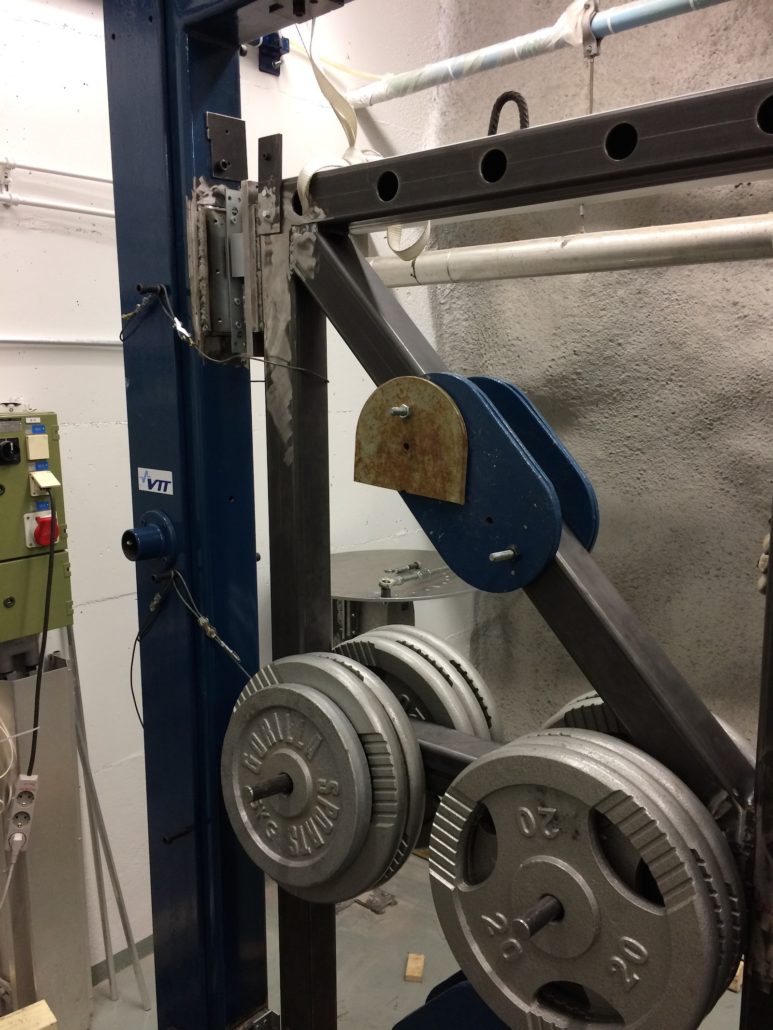

The RIVEX™ installation is easy and accurate with patented custom bolts. All you need is a cordless drill. No welding is needed at the construction site! The RiveX™ concealed hinge is CE certified by VTT Expert Services in Espoo, Finland: EN 1935:2002 (E) / Duty: Severe.
| Tuote | Profile | Material | Ball bearing | Load |
|---|---|---|---|---|
| RiveX Steel | 60 x 50 mm | 4mm steel | Yes | 120 kg / hinge |
| RiveX Aluminium | 80 x 60 mm | 4mm steel | Yes | 120 kg / hinge |
Patented

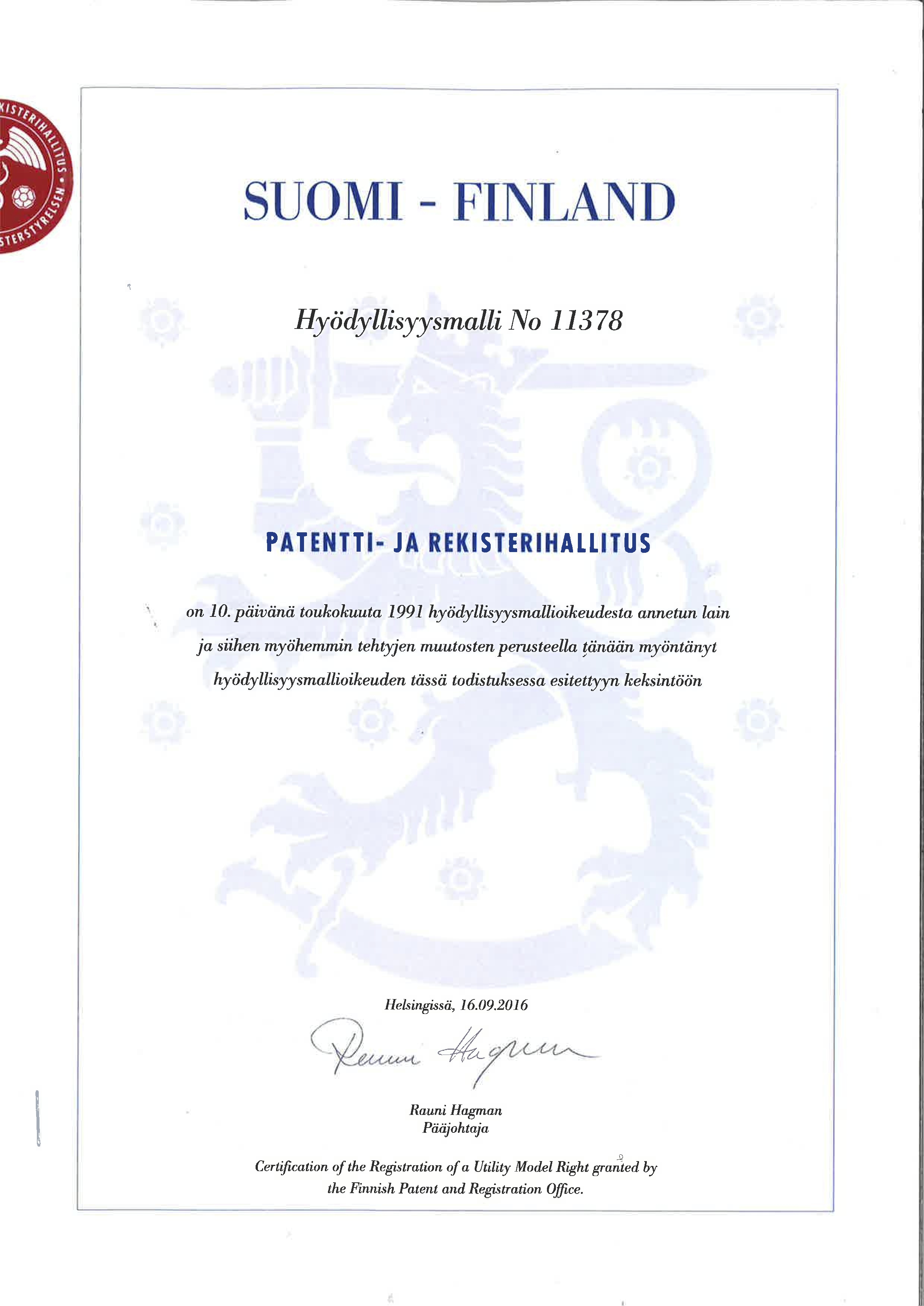

The RiveX™ concealed hinge is patented in Finland (2016) and patents are pending in Germany and Sweden.
Two RiveX™ concealed hinges can carry up to 240 kg load!

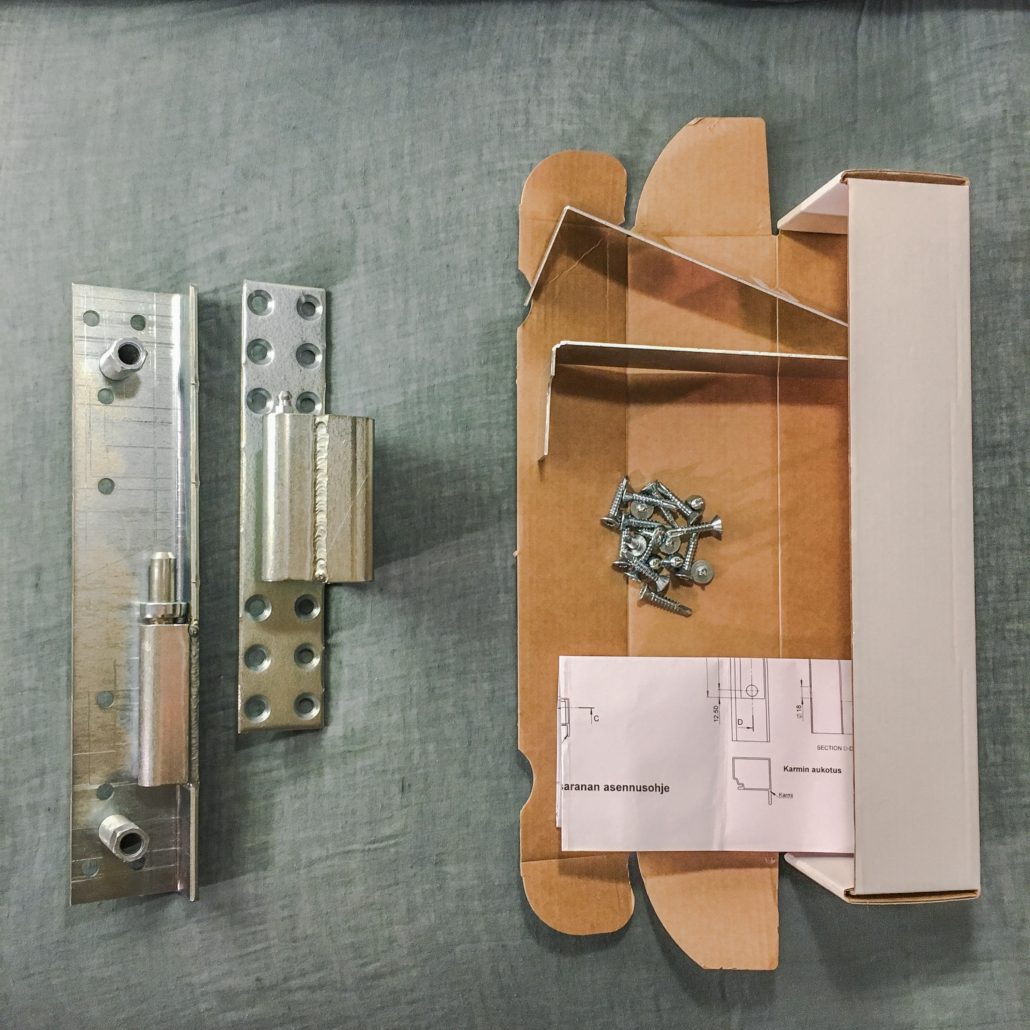

Package includes
| Nro. | Part | Quantity |
|---|---|---|
| 1 | Hinge | 1 pcs |
| 2 | Ball bearing | 1 pcs |
| 3 | Adjustment screw | 2 pcs |

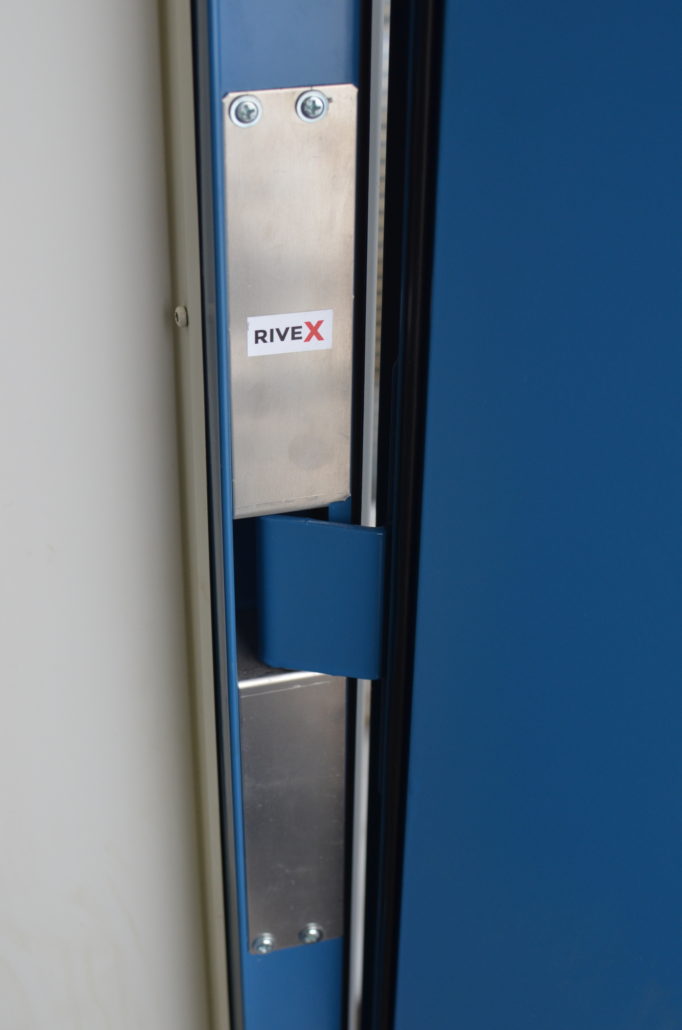

| 4 | Cover plate | 2 pcs |
| 5 | Self-drilling screw 4,8 x 25 | 12 pcs |
| 6 | Self-drilling screw 4,2 x 13 | 4 pcs |
| 7 | Installation instructions | 1 pcs |
